Max working pressure: 700-4000 bar
Dial diameter: 63-100 mm
Accuracy of full scale: 1-1,6%
Scale: bar- bar/kN
Pressure gauges.

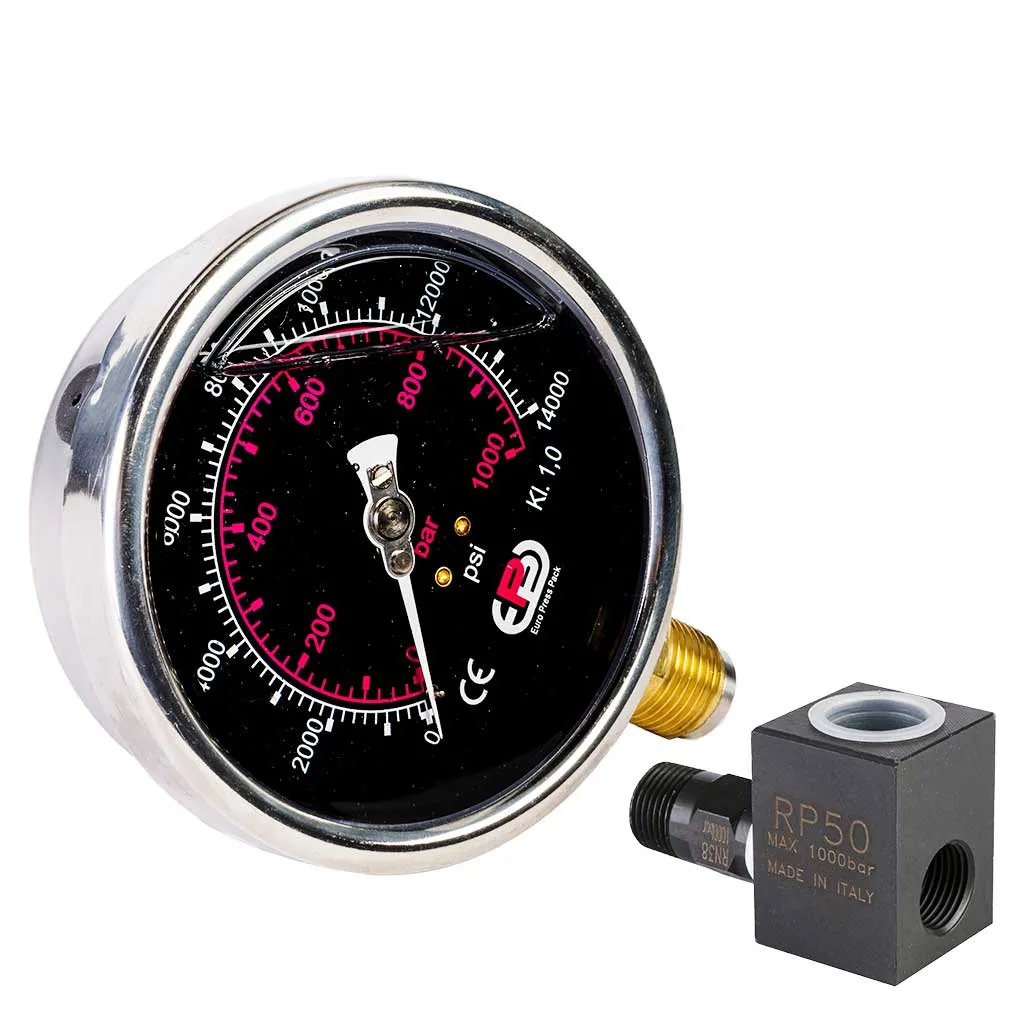

They are available with 63 or 100 mm diameter dial with bar and PSI. The 1000 bar gauges are glycerine filled while the 1600, 3000, 4000 bar are dry. The G106L pressure gauge has a 1/4” NPT screw connection for direct insertion on the left side of the pump head. The model G10 exists also in the double scale version, bar and kN, to be used up to 700 bar, and differenciated for cylinders with hollow piston (G10F##) and for cylinders with normal piston (G10S##).
Gauge blocks.
Manufactured in steel, they are available in five versions to suit the gauge diameter and distance from the equipment.
♦ Digital gauges can be supplied upon request. Adapters are available for 1000, 1600, 3000 bar gauges
| Model | Scale bar | Scale kN | For cylinders | Dim |
|
G10F1020 |
700
|
0-121 / 0-225 |
CMF 10/20 ton |
see G10
|
|
G10S1020 |
0-327 / 0-578 |
CMF/COF 30/60 ton |
||
| G10S1020 | 0-109 / 0-194 |
CGS/CMC/CMI/CMP/COI 10 ton CGS/CMC/CMP 20 ton |
||
| G10S2530 | 0-228 / 0-303 |
CMI 25 ton CGG/CGS/CMC/CMI/CMP/ COI 30 ton |
||
| G10S50100 | 0-486 / 0-911 |
CGG/CGS/CMC/CMI/CML/ CMP/COI/COS 50/100 bar |
|
Max working pressure |
Full scale |
Dial diameter |
Precision class DIN16005 |
Scale indexing |
thread |
MODEL |
Dimension mm |
Weight |
|||
| bar | bar | mm | % | bar | E | A | B | C | D | Kg | |
| 700 | 1000 | 63 | 1,6 | 50 |
1/4’’ NPT
|
G106L | 68 | 54 | 32 | 13 | 0,2 |
| G106 | |||||||||||
| 1000 | 1000 | 100 | 1 | 20 |
1/2’’ BSP Girevole |
G10 | 101 | 98 | 49 | 15,5 | 0,8 |
|
Max working pressure |
Full scale |
Dial diameter |
Precision class DIN16005 |
Scale indexing |
Thread |
MODEL |
Dimension mm |
Weight |
|||
| bar | bar | mm | % | bar | E | A | B | C | D | Kg | |
| 1600 | 1600 | 100 | 1 | 50 |
1/2’’ BSP * |
G16 | 101 | 98 | 49 | 15,5 | 0,6 |
| 3000 | 3000 |
1/2’’ BSP * |
G30 | ||||||||
| 4000 | 4000 | 100 |
M16x1,5 femmina |
G40 | 77 | 60 | 24,5 | ||||
|
*Swivel |
|||||||||||
| Model | Max working pressure | Gauge connection | in/out connection | A dimension | weight |
| bar | mm | kg | |||
| RP52 | 1000 | 1/4″ NPT | 3/8″ NPT | 100 | 0,4 |
| RP26 | 1/2″ BSP |
IN 1/4’’ NPT / OUT 3/8” NPT |
62 | 0,26 | |
| RP50 | 3/8″ NPT | 60 | 0,28 | ||
| RP501 | 90 | 0,33 | |||
| RP502 | 140 | 0,42 |
