Lifting points: 4 – 32
Force for each point: 50 – 1000 t
Max precision: 1 mm
Max pressure: 700 bar

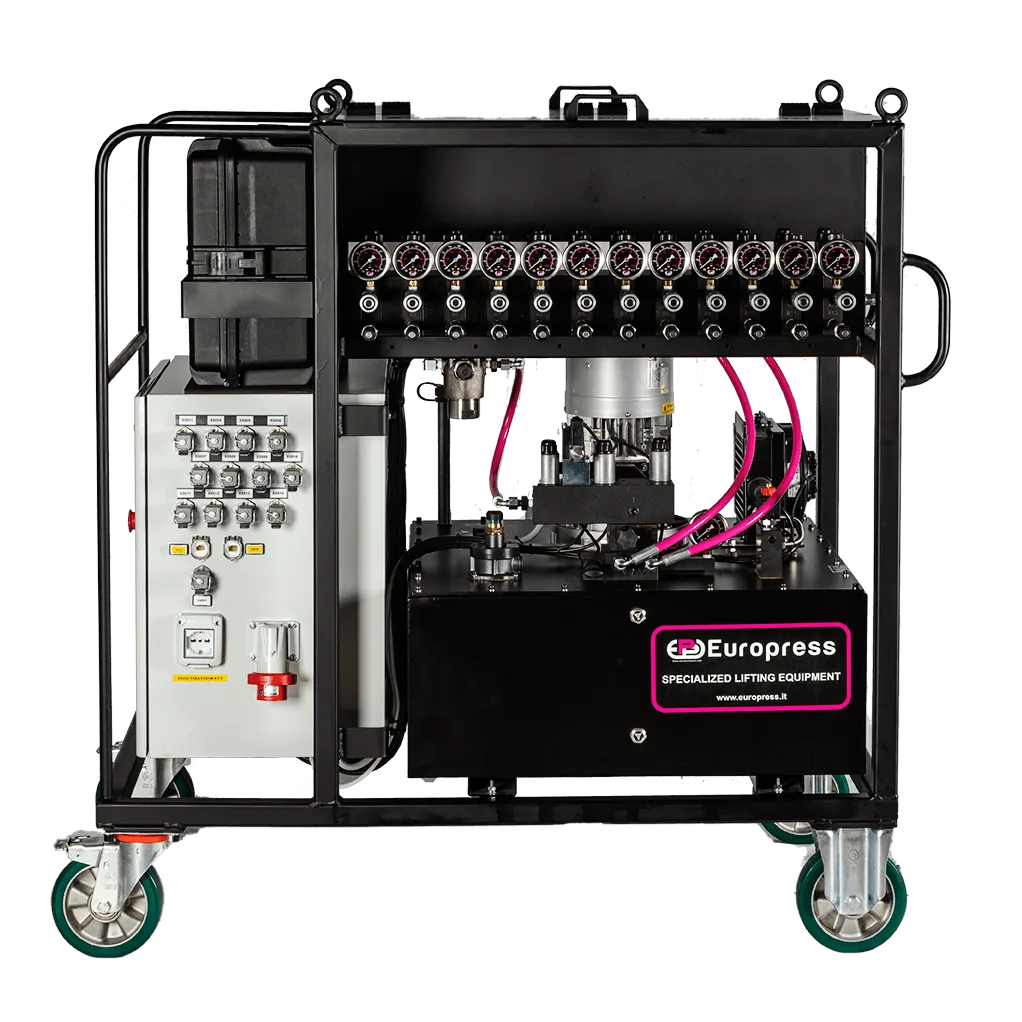

Synchrolift is the most sophisticated method for the lifting and lowering of any kind of load in a perfectly synchronised way and with the highest degree of precision. This system splits the oil flow coming out from a hydraulic power pack and directs it towards different lifting points; it controls and monitors the different flows thanks to a range of electric valves controlled by a PLC system. The PLC system controls the flow in the direction of a number of cylinders, checking the signals issued by dynamic transducers and activating appropriately the monitoring valves. This electric system enables the regulation of the movement of the cylinders stopping and/or slowing down those that exceed the difference in allowed movement as chosen by the client. A PC or a touchscreen display provides for its control system.Synchrolift is easy to control, multipurpose and extremely accurate, it can handle simultaneously many lifting points, even with different capacity cylinders. The programme can also deal both with linear and planar non- parallel lifting operations, counteracting with pinpoint precision structural failure (e.g. a bridge pier, one end of which has yielded).
OPERATIONAL AREAS
Our Synchrolift system is necessary every time hydraulic cylinders with different loads are required to lift and lower the same rate (e.g. lifting a 3000 t bridge with 1 mm precision, or squaring a building damaged by seismic activity are only two of the many applications of a synchronised lifting system).
|
CONTROL SYSTEM |
||
|
SYNCHRO |
ESY4V |
Electronic control base (4 points) with dedicated PLC + note book with included software (Windows area) to display and control operations and to book data + 4 linear stroke transducers (1 for each lifting point) + group of control valves |
|
ESY4VC |
Electronic control base (4 points) with dedicated PLC + note book with included software (Windows area) to display and control operations and to book data + 4 linear stroke transducers (1 for each lifting point) + group of control valves + trolley + cover |
|
|
SYNCHRO |
ESY8V |
Electronic control base (8 points) with dedicated PLC + note book with included software (Windows area) to display and control operations and to book data + 8 linear stroke transducers (1 for each lifting point) + group of control valves |
|
ESY8VC |
Electronic control base (8 points) with dedicated PLC + note book with included software (Windows area) to display and control operations and to book data + 8 linear stroke transducers (1 for each lifting point) + group of control valves + trolley + cover |
|
|
HYDRAULIC COMPONENTS |
||
|
ACTIVATION |
|
Customised hydraulic power pack |
|
CYLINDERS |
|
Standard hydraulic cylinders and/or as chosen by client |
|
CONNECTION |
|
Hoses, fittings and couplers according to your needs |
All EUROPRESS products are covered by a one year guarantee against any defects in materials or workmanship. This guarantee does not cover normal wear and tear, improper use or any applications not in compliance with our recommended instructions, or where the equipment is used with unsuitable fluids, modifications and/ or alterations (including those resulting from repair or attempted repair by persons not authorized by EURO PRESS PACK), or damage caused by transportation.
To report any flaw, defect, non conformity, and/or to claim action under this guarantee, the Customer shall inform EURO PRESS PACK in writing within 5 days after receipt of the goods, or in case of hidden defect, within 5 days after such defect has been discovered. Before returning the goods to EURO PRESS PACK for possible remedy under guarantee, the purchaser shall have received EURO PRESS PACK’s authorization . If EURO PRESS PACK is firmly convinced that its own product is defective, EURO PRESS PACK will provide free of charge for repair or replacement. The transport costs to and from EURO PRESS PACK are at the customer’s charge.
If the intervention of EURO PRESS PACK personnel or of our authorized distributors is requested on the site for installation of the replaced items (provided it is ascertained that they are covered by this guarantee) the costs of transfer of such personnel, their travelling hours and travel expenses are at the Customer’s charge, whereas only the actual working hours will be at the charge of EURO PRESS PACK or of its authorized distributor.
THE ABOVE GUARANTEE IS THE ONLY GUARANTEE ACKNOWLEDGED AND RECOGNIZED BY EURO PRESS PACK AND IT REPLACES ANY AND ALL OTHER EXPLICIT OR IMPLICIT GUARANTEES REGARDINGTHEPRODUCTSMANUFACTURED AND MARKETED BY EURO PRESS PACK, AS TO THEIR MARKETABILITY OR SUITABILITY FOR SPECIFIC APPLICATIONS.
IT IS HEREBY EXPRESSLY STATED THAT ANY CHARGES AND/OR LIABILITY OF EURO PRESS PACK ARE EXCLUDED REGARDING:
THIS GUARANTEE WILL NOT BE EFFECTIVE IN CASE OF EVEN PARTIAL DEFAULT IN PAYMENT FOR THE SUPPLIED GOODS, INCLUDING INVOICES FOR TECHNICAL ASSISTANCE SERVICES.
The maximum amount payable by EURO PRESS PACK for damages will at all events be limited to the actually paid purchase price and shall therefore never exceed this price.
I In case of goods lost during transport, please contact the company within 30 days of loss: sales@europresspack.it
QUALITY CERTIFICATION
Euro Press Pack has always been a Company very attentive to quality norms. This means that both the design of our products than their manufacturing are planned considering the Good Manufacturing Practice.All necessary controls are made to grant our customers the highest possible quality standard. In this way the final product is produced and checked according to the defined procedures and this assures that the quality system is efficient, controlled and proved.
QUALITY SYSTEM CERTIFICATE ISO 9001
Certification for design, manufacturing, marketing and repair of high pressure components.
ENVIRONMETAL SYSTEM CERTIFICATE ISO 14001
System certification for design and manufacture, through the various step of cutting, mechanical machining, surface treatments, painting, assembly, testing, packing and dispatch, sales and service of high pressure hydraulic fluid components.
ANSI B30.1
All cylinders comply to the standard laid down by the American National Standards institute (apart from CGS#P#, CGG#P#, and CGR cylinders).
EN 60204-1
The electric parts of the machines are made according the standard of EN 60204-1.
SAE 100R10
The 700 bar hoses exceed this norm.
Direttive CE 2006/42/CE – CE 2006/95/CE – CE 2004/108/CE
All our power packs conform the CE norm on the machine directive, low tension and electromagnetic compatibility.
CE mark.
All EUROPRESS products meet the European safety directives. Except certain systems or utensils which are designed for a specific use and are certified as machineries, all the cylinders, pumps and power packs of generic purpose are accompanied by certificates. The CE certification is responsibility of the construction of the machinery in which all the components are assembled.
